Modular Aluminum Stage Truss for Events 500kg Capacity

  • Modular Aluminum Stage Truss for Events 500kg Capacity
  • Modular Aluminum Stage Truss for Events 500kg Capacity
  • Modular Aluminum Stage Truss for Events 500kg Capacity
  • Modular Aluminum Stage Truss for Events 500kg Capacity
  • Modular Aluminum Stage Truss for Events 500kg Capacity
  • Modular Aluminum Stage Truss for Events 500kg Capacity
Τόπος καταγωγής Jiangsu, Κίνα
Μάρκα Shizhan
Αριθμό μοντέλου Truss-Rt αλουμίνιο
Ποσότητα παραγγελίας min 100
Τιμή $44-46

Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.

whatsapp:0086 18588475571

WeChat: 0086 18588475571

Skype: sales10@aixton.com

Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.

x
Λεπτομέρειες
Τύπος σύνδεσης Σύνδεση ΚΑΡΦΙΤΣΩΝ Φορτίο χωρητικότητας 500 κιλά
Υλικό Κράμα αργιλίου Μονάδα μήκους 0.5m, 1m, 2m, 3m, 4m, 5m ή προσαρμοσμένος
Σχήμα δοκού τετράγωνο, τρίγωνο, κύκλος ή προσαρμοσμένος Σχήμα τμήματος δομής Τετράγωνο ή Στρογγυλό
Πάχος σωλήνα δοκού 1.5/2/3mm Διάμετρος σωλήνα δοκού 20mm, 32mm, 50mm
Σκληρότητα 16 βαθμός Ελαφρύ δάση 200*200mm, 250*250mm
Μεσαία καθήκοντα 290*290mm, 300*300mm; 350*350mm, 300*400mm; 400*400mm; 450*450mm; 400*600mm βαρύ φορτίο 520*760mm; 600*760mm; 600*1000mm
Πάχος κύριου σωλήνα 30*2mm; 50*3mm; 50*4mm; 50*5mm Πάχος με σωλήνα 18*2mm· 20*2,5mm· 25*2,5mm
Πάχος σωλήνα στήριγμα 20*2mm, 25*2mm, 30*2mm
Επισημαίνω

modular aluminum stage truss

,

aluminum lighting truss 500kg capacity

,

event truss with high load capacity
Αφήστε ένα μήνυμα
Περιγραφή προϊόντων
Aluminium Stage Truss Structure Outdoor Stage Truss Design
Product Specifications
Attribute Value
Connection Type Pin Connection
Feature Durable
Frame design Modular
Product Type Display Truss
Application Events, Concert, Music, Performance, DJ Band, Event, Exhibition
Welding Welding
Load-bearing Capacity 500kg
Assembly Method Quick installation
Structure Type Modular Structure
Material Aluminum alloy
Unit length 0.5m, 1m, 2m, 3m, 4m, 5m or customized
Color Silver, black or customized
Truss section shape Square or round
Shape Square, Triangle, round or customized
Truss tube thickness 1.5/2/3MM
Truss tube diameter 20mm, 32mm, 50mm
Hardness 16 degree

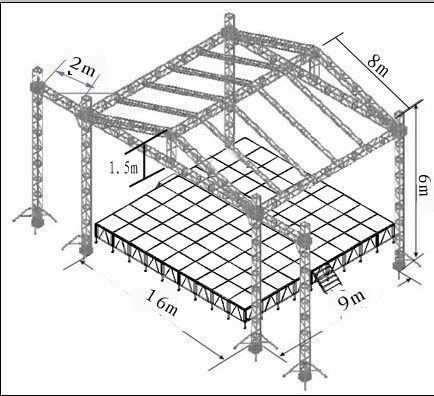

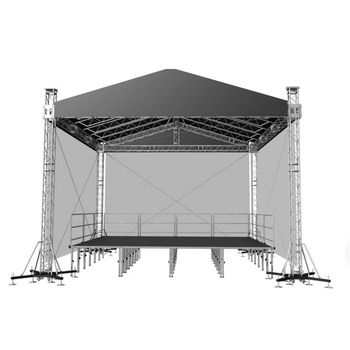

Modular Aluminum Stage Truss for Events 500kg Capacity 0 Modular Aluminum Stage Truss for Events 500kg Capacity 1
Technical Details
Truss Material: Aluminum alloy 6082-T6
Light duty truss: 200*200mm; 250*250mm
Medium duty truss: 290*290mm, 300*300mm; 350*350mm; 300*400mm; 400*400mm; 450*450mm; 400*600mm
Heavy duty truss: 520*760mm; 600*760mm; 600*1000mm
Main tube thickness: 30*2mm; 50*3mm; 50*4mm; 50*5mm
Vice tube thickness: 18*2mm; 20*2.5mm; 25*2.5mm
Brace tube thickness: 20*2mm; 25*2mm; 30*2mm
Length: 0.5m/1m/1.5m/2m...4m or custom size
Truss type: Spigot or bolt
Truss Shape: Ladder truss, triangular truss, square truss, arch truss, circle truss
Color: Silver or black, blue, green...
Usage: Concert, new product release, fashion show, booth stand construction
Delivery Time: 10 working days

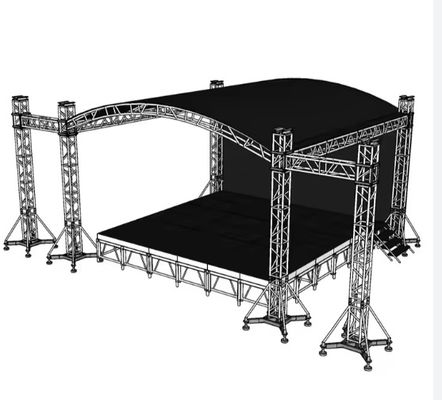

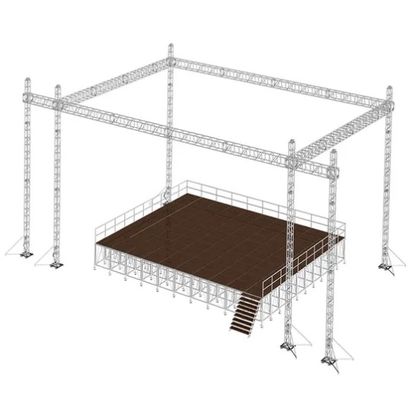

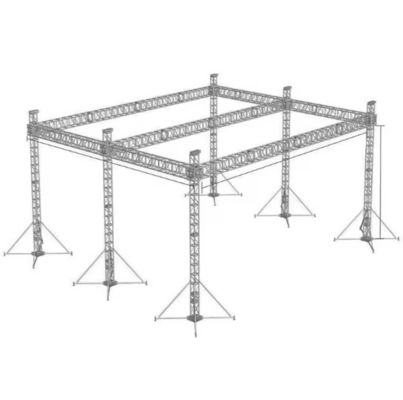

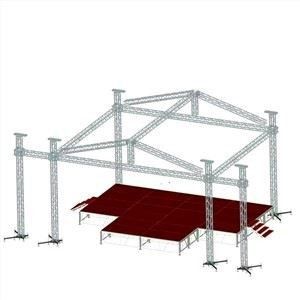

Modular Aluminum Stage Truss for Events 500kg Capacity 2 Modular Aluminum Stage Truss for Events 500kg Capacity 3 Modular Aluminum Stage Truss for Events 500kg Capacity 4 Modular Aluminum Stage Truss for Events 500kg Capacity 5
Applications
Our aluminum alloy stage truss is a modular system made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events and applications:
  • Concerts and festivals: Build stages for concerts, festivals, and outdoor events with configurable shapes and sizes
  • Theatrical productions: Construct sets, backdrops, and structures for plays, musicals, and operas
  • Exhibitions and trade shows: Create booths, displays, and exhibition structures
  • Corporate events: Build stages and backdrops for product launches, conferences, and award ceremonies
  • Sports events: Construct race start/finish lines, podiums, and scoreboards
Modular Aluminum Stage Truss for Events 500kg Capacity 6 Modular Aluminum Stage Truss for Events 500kg Capacity 7 Modular Aluminum Stage Truss for Events 500kg Capacity 8 Modular Aluminum Stage Truss for Events 500kg Capacity 9 Modular Aluminum Stage Truss for Events 500kg Capacity 10 Modular Aluminum Stage Truss for Events 500kg Capacity 11
Why Choose Our Products
  • TUV, SGS, CE Certified products
  • 15 years experience in truss, stage, barrier and scaffolding
  • 35,000 m² workshop with excellent production capacity
  • Professional engineering team for perfect project solutions
  • Own aluminum profile production line for quality control
  • Strict QC process with installation test before delivery
Frequently Asked Questions
How do I know your quality? Our products have TUV/SGS/CE/ISO9001 certificates and we offer samples for quality checking.
Payment methods: T/T, Western Union, Trade Assurance, L/C.
Warranty: 1 year warranty with free replacement for non-artificial damage.
Customization: Our technical team offers perfect solutions for custom projects.
Modular Aluminum Stage Truss for Events 500kg Capacity 12
