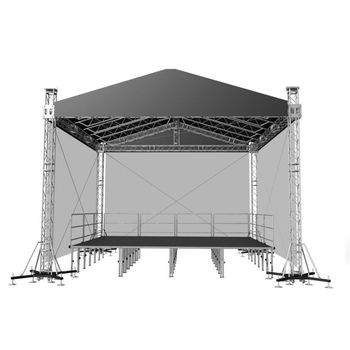

Aluminum Alloy Modular Stage Truss System for Concerts and Events
| Τόπος καταγωγής | Jiangsu, Κίνα |
|---|---|
| Μάρκα | Shizhan |
| Αριθμό μοντέλου | Truss-Rt αλουμίνιο |
| Ποσότητα παραγγελίας min | 100 |
| Τιμή | US$44-46 |
Με ελάτε σε επαφή με δωρεάν δείγματα και δελτία.
whatsapp:0086 18588475571
WeChat: 0086 18588475571
Skype: sales10@aixton.com
Εάν έχετε οποιαδήποτε ανησυχία, παρέχουμε τη 24ωρη σε απευθείας σύνδεση βοήθεια.
xΛεπτομέρειες
| Τύπος σύνδεσης | Σύνδεση ΚΑΡΦΙΤΣΩΝ | Σχήμα | Ορθογώνιο, τετράγωνο, τρίγωνο, στρογγυλό ή προσαρμοσμένο |
|---|---|---|---|
| Σχέδιο πλαισίων | Αρθρωτός | Μήκος | 1-4 μ. |
| Υλικό | Κράμα αργιλίου | Φορτίο χωρητικότητας | 1000 κιλά |
| Μονάδα μήκους | 0.5m, 1m, 2m, 3m, 4m, 5m ή προσαρμοσμένος | Σχήμα τμήματος δομής | Τετράγωνο ή Στρογγυλό |
| Πάχος σωλήνα δοκού | 1.5/2/3mm | Διάμετρος σωλήνα δοκού | 20mm, 32mm, 50mm |
| Σκληρότητα | 16 βαθμός | Ελαφρύ δάση | 200*200mm, 250*250mm |
| Μεσαία καθήκοντα | 290*290mm, 300*300mm; 350*350mm, 300*400mm, 400*400mm, 450*450mm, 400*600mm | βαρύ φορτίο | 520*760mm, 600*760mm, 600*1000mm |
| Πάχος κύριου σωλήνα | 30*2mm, 50*3mm, 50*4mm, 50*5mm | ||
| Επισημαίνω | aluminum alloy stage truss system,modular truss for concerts,event lighting truss with warranty |
||
Περιγραφή προϊόντων
Aluminium Concert Lighting Truss System Stage
Product Specifications
| Attribute | Value |
|---|---|
| Connection Type | Pin Connection |
| Feature | Durable |
| Shape | Rectangle, square, Triangle, round or customized |
| Frame design | Modular |
| Product Type | Stage Truss |
| Application | Events, Concert, Music, Performance, DJ Band, Event, Exhibition |
| Length | 1-4m |
| Material | Aluminum Alloy 6082-T6 |
| Load-bearing Capacity | 1000kg |
| Assembly Method | Quick installation |
| Unit length | 0.5m,1m,2m,3m,4m,5m or customized |
| Color | Silver, black or customized |
| Truss section shape | Square or round |
| Truss tube thickness | 1.5/2/3MM |
| Truss tube diameter | 20mm,32mm,50mm |
| Hardness | 16 degree |
Technical Details
Truss Material: Aluminum alloy 6082-T6
Light Duty Truss: 200*200mm; 250*250mm
Medium Duty Truss: 290*290mm, 300*300mm, 350*350mm, 300*400mm, 400*400mm, 450*450mm, 400*600mm
Heavy Duty Truss: 520*760mm, 600*760mm, 600*1000mm
Main Tube Thickness: 30*2mm; 50*3mm; 50*4mm; 50*5mm
Vice Tube Thickness: 18*2mm; 20*2.5mm; 25*2.5mm
Brace Tube Thickness: 20*2mm; 25*2mm; 30*2mm
Length: 0.5m/1m/1.5m/2m up to 4m or custom size
Truss Type: Spigot or bolt
Truss Shape: Ladder truss, triangular truss, square truss, arch truss, circle truss
Color Options: Silver, black, blue, green or custom
Usage: Concert, new product release, fashion show, booth stand construction
Delivery Time: 10 working days
Applications
Our aluminum alloy stage truss system is a modular solution made of lightweight aluminum alloy tubes that can be easily assembled and disassembled. It is widely used in various events and applications:
- Concerts and festivals: Build stages for concerts, festivals, and outdoor events with configurable shapes and sizes
- Theatrical productions: Construct sets, backdrops, and structures for plays, musicals, and operas
- Exhibitions and trade shows: Create booths and displays for product exhibitions
- Corporate events: Build stages and backdrops for product launches, conferences, and award ceremonies
- Sports events: Construct race start/finish lines, podiums, and scoreboards
Company Advantages
- TUV, SGS, CE Certified products
- 15 years experience in truss, stage, barrier and scaffolding
- 35,000 m² workshop with strong production capacity
- Professional engineering team for perfect project solutions
- Own aluminum profile production line for quality control
- Strict QC team ensuring product condition before delivery
- Process and final inspection with installation testing
Frequently Asked Questions
How do I know your quality? Do you support sample orders?
Our products have obtained TUV/SGS/CE/ISO9001 certificates. We can provide samples for quality checking before batch orders.
Which payment methods do you accept?
T/T, Western Union, Trade Assurance, L/C.
What is your product warranty?
One year warranty covering any non-artificial damage with free replacement.
Can you do customized designs?
Yes, our technical team will provide perfect solutions for your projects.
